YC601 Letter Steel Stamp

  • Letter Steel Stamp - YC 601
  • Letter Steel Stamp - YC 601
  • Letter Steel Stamp - YC 601
Feature

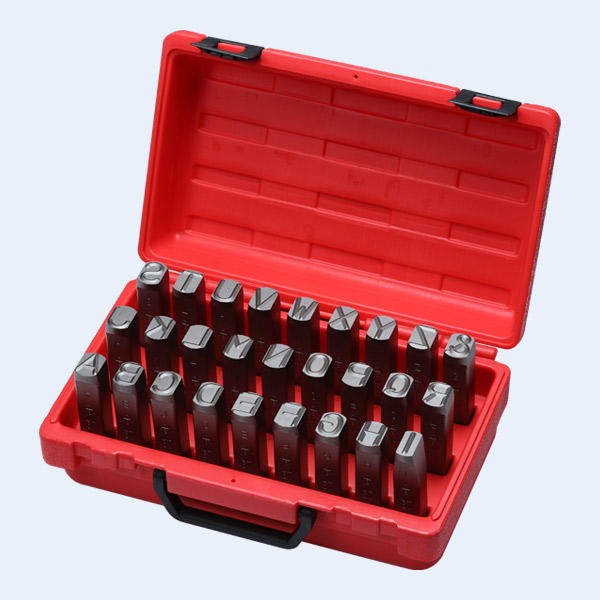

  • Each set packed in a red functional patented design P.P. plastic box.
  • Stamp is the sandblasting treatment.
  • Hardness: Front End Font HRC 58~62 Degrees.
                   Tail End Tempering HRC 38~46 Degrees
  • For hand-held, hammer-struck and/or machine applications.
  • Marked with character and size on the stamp’s body side.
  • Each stamp is double-beveled face for easy sighting.
  • Material: CRV(6150)
  • 27 pcs/set Include A~Z, symbol &.
Specifications
ITEM NO. Character Size(H)
Metric
Imperial		 Shank Size
(mm)Square		 Shank Size
(mm) Length
YC601- 1.0mm(3/64") 6.35 62
YC601- 1.5mm(1/16") 6.35 62
YC601- 2.0mm (5/64") 6.35 61
YC601- 2.5mm (3/32") 6.35 61
YC601- 3.0mm (1/8") 6.35 61
YC601- 4.0mm (5/32") 6.35 59
YC601- 5.0mm (3/16") 7.93 61
YC601S- 6.0mm (1/4") 7.93 61
YC601- 6.0mm (1/4") 9.52 67
YC601- 7.0mm (9/32") 11.11 68
YC601S- 8.0mm(5/16") 11.11 67
YC601- 8.0mm (5/16") 12.7 71
YC601- 10.0mm (3/8") 12.7 71
YC601- 12.0mm (1/2") 15.87 83
YC601- 16.0mm (5/8") 15.87 95
YC601- 19.0mm (3/4") 19.05 98
